Mobile roughness measuring instrument MarSurf M 310 with printer

Mobile roughness measuring instrument MarSurf M 310 with printer
show (scroll to) description & details
Product number: 6910268
Mobile roughness measuring instrument MarSurf M 310 with printer
Stylus: 5 µm
Scope of delivery:
  • MarSurf M 310 basic device
  • Drive unit (detachable)
  • 1 standard probe PHT6-350, conforming to standards
  • Built-in rechargeable battery
  • Roughness standard integrated into housing (detachable), including Mahr calibration certificate
  • Set consisting of Star Micronics SM-L200 Bluetooth® printer and USB wireless adapter
  • Probe protection / V-block holder
  • Charger / 3 adapters
  • Height adjustment (integrated)
  • Carry case with shoulder strap
  • USB cable
  • Hand-held support with height adjustment (pair)
  • Extension cable for drive unit (length 1.2 m)
  • Operating instructions
Product price
3.900,00 €
5,60 €
Please enter the label
Application
  • For shafts and housing components
  • For large machines
  • For large workpieces
  • For milled and turned parts
  • For ground and honed workpieces
  • On the production line or directly on the machine; ideal for rapid testing of the surface roughness of a workpiece

Product features Mobile roughness measurement – guaranteed success!
  • Compact roughness measuring instrument for mobile use
  • Simple and intuitive to use: as easy as using a smartphone
  • Large, illuminated 4.3" TFT touch display
  • Adjustable display
  • Micro USB interface for remote control using ASCII commands, e.g. using software for statistical process control
  • USB-A interface - for connection of e.g. a USB Wwreless adapter or the USB/wireless printer
  • Wireless transmission of measurement results via wireless stick to the free MarCom software
  • Remote start of measurement via cable or wireless

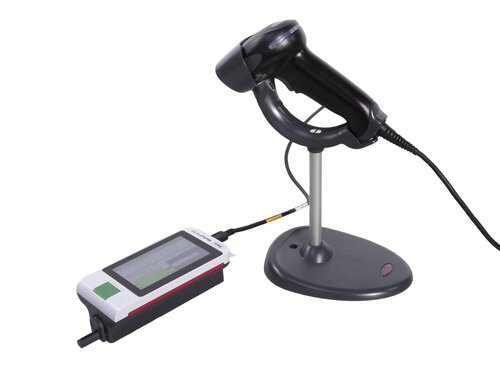

  • Connection of a scanner for automatic start of the measuring programs or reading of protocol texts via barcode or QR code
  • Specification of the intersection line C in μm or in % of Rz for the parameters Rmr and tp
  • Data backup as TXT, X3P, CSV or PDF file
  • Transfer of measuring records and data optionally via cable or wireless
  • IATF 16949 compliant – safe traceability with MarConnect
  • Print directly on mobile printer (as option or directly in set with printer)
  • Create complete PDF measuring records directly in the measuring instrument
  • Customer-specific comments for the PDF measuring record can be entered directly into MarSurf M 310
  • Display and printout of the MRC and ADC diagram
  • Storage of measuring programs (quick & easy)
  • Mains-independent operation: Over 1200 measurements without having to recharge the instrument
  • An all-in-one solution. Small and lightweight (approx. 500 g)
  • Instrument flexibility: removable drive unit
  • 31 thread parameters: offer the same range of functions as a laboratory instrument.
  • Roughness standard stored within housing aids in reducing errors
  • Quick access to your frequently used functions via the Favorites list in the display
  • Automatic cutoff selection, so even non-specialists can be sure of getting the correct measuring results

  • Additional versions with transverse drive unit available as MarSurf M 310 C2 or MarSurf M 310 set without probe
  • Free software "MarWin Easy Roughness Viewer" for further documentation (statisics, multiple profiles and results on one page etc.) available for download on the Mahr website.

Scope of delivery Roughness standard, integrated in housing (removable), Stylus protection / Prism holder, power source, Set consisting of Star Micronics SM-L200 Bluetooth® printer and USB wireless adapter, USB Wireless stick, instruction manual, Carrying case with shoulder strap, USB cable, Extension cable to drive unit (length 1.2 m)
MarSurf M 310 with printer | Art. no. 6910268
