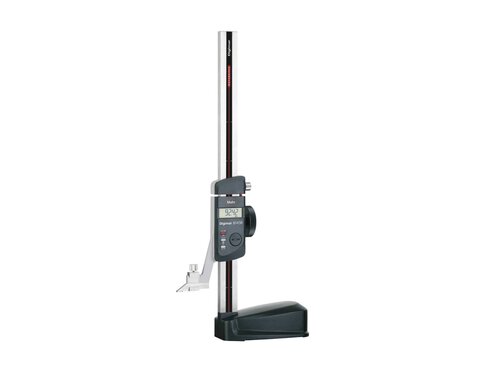

Digital height gage Digimar 814 SR

Digital height gage Digimar 814 SR
show (scroll to) description & details
Product number: 4426100
Height measuring and scribing instrument Digimar 814 SR
Measuring range : 0 - 350 mm
0.01 mm / 0.0005 inch
Error limit µm: 40 µm
Data interface: Opto RS-232C, Digimatic, USB
Package contains: scriber, battery, test certificate, instruction manual, carton
Product price
774,00 €
Variants
5,60 €
Please enter the label
Functions RESET (set display to zero), mm/inch, ABS (switch between relative and absolute measurement), Lock/Unlock, PRESET (for entering a numerical value), DATA (data transmission via connection cable), AUTO-ON / OFF
Application
  • Scribing and marking of work pieces
  • Measuring heights and distances
Product features
  • Interchangeable measuring and scriber tips, carbide-tipped
  • Convenient hand wheel for positioning and measuring
  • Fine adjustment device with locking screw
  • Ergonomic and sturdy machine base
  • Hardened and lapped contact surface for smooth and even movement
  • Slide and rail are made of hardened stainless steel
  • High contrast 12 mm LCD display
  • Data output: USB, Opto RS232, Digimatic
  • Battery life up to 3 years
Scope of delivery scriber, battery, test certificate, instruction manual, carton
Digimar 814 SR | Art. no. 4426100
