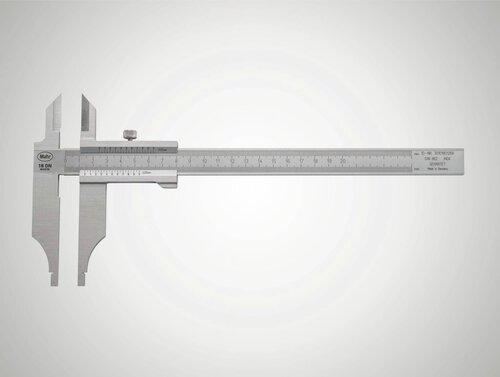

Workshop calipers MarCal 18 DN
| Product number: | 4113206 |
|---|
Workshop calipers MarCal 18 DN
Locking screw above
Measuring range : 0 - 2000 mm
Readings mm: 0.05 mm
Package contains: up to 1000 mm delivered with a case, over 1000 mm individually packed
Locking screw above
Measuring range : 0 - 2000 mm
Readings mm: 0.05 mm
Package contains: up to 1000 mm delivered with a case, over 1000 mm individually packed
Product price
0,00 €
Application
With two mm scales and vernier scales to directly read external and internal dimensions
- Lower scale for external dimensions
- Upper scale for internal dimensions
- Lower scale for external dimensions
- Upper scale for internal dimensions
Product features
- Vernier and scale have a satin chrome finish for glare free reading
- Locking screw above
- Rounded measuring blades for inside measurements
- Measuring surfaces made of steel
- Slide and beam made of hardened stainless steel
- Raised guideway for the protection of the scale
Scope of delivery
up to 1000 mm delivered with a case, over 1000 mm individually packed
MarCal 18 DN | Art. no. 4113206

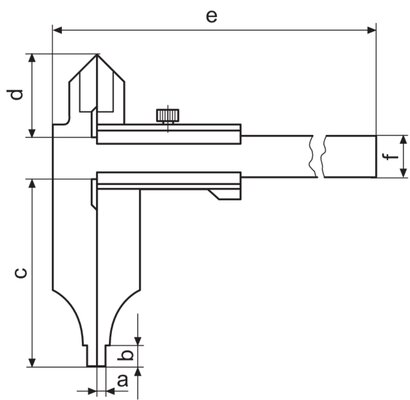

Dimensions
a 15 mm | b 19 mm | c 200 mm | d 96 mm | e 2270 mm | f 45 mm |
