Test indicator MarTest 801 S1
| Product number: | 4305960DKS |
|---|
Test indicator MarTest 801 S1
Factory standard
Measuring range : ± .015"
Graduation value inch: .0005"
Package contains: spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a3/8, test certificate, instruction manual, case
Factory standard
Measuring range : ± .015"
Graduation value inch: .0005"
Package contains: spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a3/8, test certificate, instruction manual, case
Product price
131,00 €
Application
- Measurement of concentricity, alignment, parallelism and flatness
- Centering of bores and shafts
- Parallel or perpendicular alignment of work pieces
Product features
- High-contrast dial face, sealed with O-ring
- Mineral glass viewing panel for best protection:
- against cracking, scratching or damage caused by hot shavings
- optimum resistance to solvents - Matt chrome-plated protective casing with three integrated dovetail guide rails
- Shockproof measuring mechanism
- Anti-magnetic model
- Automatic adjustment to the contacting direction ensuring infallible readings
- Ball bearing mounted double lever
- Friction clutch overload protection
Scope of delivery
spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a3/8, test certificate, instruction manual, case
MarTest 801 S1 | Art. no. 4305960DKS

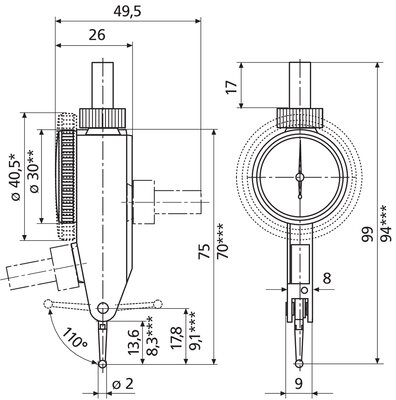

Dimensions
b 30 mm | c 13.6 mm | d 17.8 mm | e 75 mm | f 99 mm
