Self-centering dial bore gage Marameter 844 N
| Product number: | 4474003KAL |
|---|
Self-centering dial bore gage Marameter 844 N
Measuring range 250 - 400 mm mm
Design: Standard, moveable anvil carbide-tipped

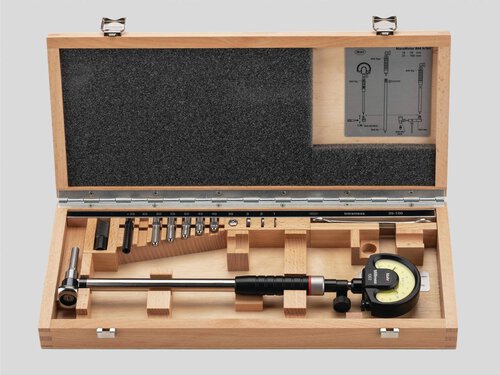

Package contains: measuring holder, measuring head, anvil spindle, wooden case, excludes indicator
Measuring range 250 - 400 mm mm
Design: Standard, moveable anvil carbide-tipped
Package contains: measuring holder, measuring head, anvil spindle, wooden case, excludes indicator
Product price
3.668,75 €
Application
- Measuring the diameter, roundness and conical form of a bore as well as the distances of parallel plane surfaces
Product features
- Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a hardened steel ball
- Transmission lever system transfers movement of movable anvil to indicating instrument
- The broad centering bridge ensures automatic centering in the bore
- Resistant to temperature because the shank and transfer rod are made of heat resistant Invar steel
- Highly resistant to wear and tear because of carbide tipped moving anvil
- Constant measuring force due to built-in spring, eliminating user influence
- Universally applicable and extremely versatile
- Each instrument spans a broad measuring range
- Quick and easy to adjust to any size (within its range) - Extensive modular system is composed of measuring head, holder, extensions, right angle attachments and depth stops
- Invar steel has a particularly low expansion coefficient
- instrument totally insensitive to any kind of heat (including user body heat and increased ambient temperature)
Scope of delivery
measuring holder, measuring head, anvil spindle, wooden case, excludes indicator
Marameter 844 N | Art. no. 4474003KAL
Dimensions
a 16 mm | b 24 mm | c 366 mm | d 110 mm | e 28 mm |
