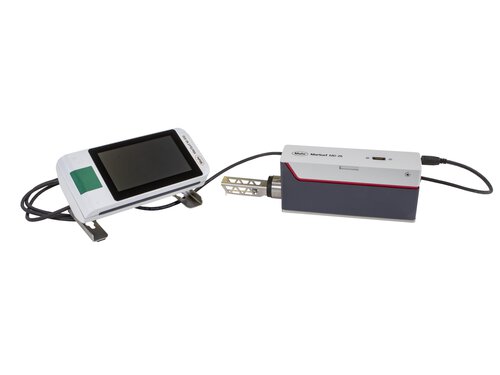

Mobile surface measuring instrument MarSurf M 410
| Product number: | 6910290 |
|---|
Surface evaluations using skidless tracing are needed not only in the measuring room but more and more in the production area.
Product price
8.940,00 €
Application
Mechanical engineering
Bearings, shafts, racks, valves, various components from the engineering and precision engineering industry
Automotive
Steering, brake system, gearbox, crankshaft, camshaft, cylinder head, cylinder block, turbocharger
Medicine
Surface roughness measurement for hip and knee endoprostheses
Aerospace
Turbine components
Optics
Various optical components
Bearings, shafts, racks, valves, various components from the engineering and precision engineering industry
Automotive
Steering, brake system, gearbox, crankshaft, camshaft, cylinder head, cylinder block, turbocharger
Medicine
Surface roughness measurement for hip and knee endoprostheses
Aerospace
Turbine components
Optics
Various optical components
Product features
Simple, innovative, flexible – modern surface metrology for handheld use
- Handy roughness tester for mobile use
- Simple and intuitive operation: As easy as operating a smartphone
- Large, backlit 4.3“ TFT touch display
- Rotatable display
- Magnetic probe holder: Fast probe arm change without tools
- Thanks to skidless probe: measurements of roughness as well as waviness – no extra measuring station required, determination of R, W and P parameters
- Simple alignment of the probe system: The inclination can be easily corrected using the menu-guided graphic instructions./li>
- Process and material safety thanks to automatic zeroing
- Micro USB interface for remote control via ASCII commands, e.g. via software for statistical process control
- USB-A interface for connecting e.g. a USB wireless adapter or the USB wireless printer
- Wireless transmission of measurement results via wireless stick to the free MarCom software
- Remote start of measurement via cable or wireless
- Connection of a scanner for automatic start of the measuring programs or reading of protocol texts via barcode or QR code
- Specification of the profile section lebel C in μm or in % of Rz for the characteristic values Rmr and tp/li>
- Data backup as TXT, X3P, CSV and PDF file
- Transmission of measurement protocols and data optionally via cable or wireless
- IATF 16949 compliant - secure traceability with MarConnect.
- Print directly to the mobile printer (as an option or directly in the set with printer)
- Creation of finished PDF protocols directly in the measuring device
- Customer-specific comments for the PDF log are entered directly on the MarSurf M 410
- MRK and ADK curve display and printing
- Measuring programs are saved (Quick & Easy)
- Mains-independent operation: over 1200 measurements without having to recharge the device
- Everything in the palm of your hand. Small size and low weight (approx. 500 g)
- Flexible device: Removable drive unit
- More than 50 parameters: Offer a performance range like a laboratory instrument.
- Quick access to your desired functions through favorites storage in the display
- Automatic cutoff selection: ensures correct measurement results even for the non-measuring technician
- Free software "MarWin Easy Roughness Viewer" for further documentation (statistics, multiple profiles and results on one page etc.) available for download on the Mahr website.
Scope of delivery
- MarSurf M 410 operating unit
- Drive unit MD 26
- 1 standard probe arm BFW A 10-45-2/90°, standardized
- Docking station for operating unit
- Probe protection
- Built-in rechargeable battery
- Charger / 3 mains adapters
- Height adjustment (integrated)
- USB cable
- Extension cable for drive unit (length 1.2 m)
- Operating instructions
MarSurf M 410 | Art. no. 6910290
