Micrometer Micromar 40 AB
| Product number: | 4134103 |
|---|
Micrometer Micromar 40 AB
For measuring grooves, spline shafts, recesses, etc.
DIN 863-3
Measuring range : 75 - 100 mm mm
Readings: 0.01
Package contains: instruction manual, setting standard (measuring range of 25-50 mm), case
For measuring grooves, spline shafts, recesses, etc.
DIN 863-3
Measuring range : 75 - 100 mm mm
Readings: 0.01
Package contains: instruction manual, setting standard (measuring range of 25-50 mm), case
Product price
0,00 €
Application
For measuring grooves, spline shafts, recesses, etc.
Product features
- Reduced measuring surfaces Ø 3 mm
- Operating and display units with satin chrome finish
- Hard lacquered steel frame
- Spindle and anvil made of hardened steel, carbide-tipped
- Heat insulators
- Rapid drive with integrated ratchet
- Locking device
Scope of delivery
instruction manual, setting standard (measuring range of 25-50 mm), case
Micromar 40 AB | Art. no. 4134103

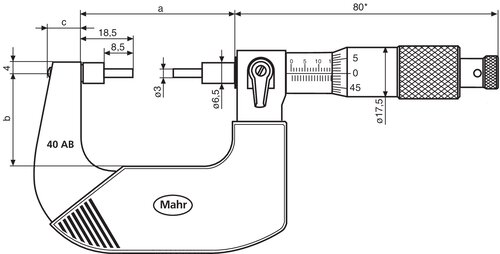

Dimensions
a 131 mm | b 71.5 mm | c 13 mm |
