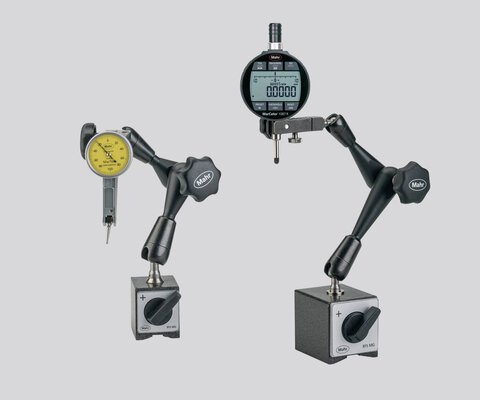

Measuring tripod with magnetic base MarStand 815 MG
| Product number: | 4420350 |
|---|
Measuring tripod with magnetic base MarStand 815 MG
Total height 222 mm
Projection (max.) 130 mm
Mounting hole: 8H7
Total height 222 mm
Projection (max.) 130 mm
Mounting hole: 8H7
Product price
270,00 €
Application
- For general measuring tasks in production and workshops
- High flexibility and stability, ideal for display devices with a resolution of up to 0.01 mm (.0005") such as dial gauges or test indicators
Product features
- 3D jointed arm, can reach any position within the operating range
- Easy positioning of all three joints with a securely fixed handle
- Maintenance-free mechanical clamping system
- Black anodized arm components made from high-quality light alloy
- Dial indicator holder with 8 mm mounting bore and dovetail for dial test indicator measuring devices
- Fitted with zero-play micro-precision adjuster
- Very powerful switching magnet
Adhesive force prism
300
MarStand 815 MG | Art. no. 4420350
Dimensions
a 222 mm | b 130 mm | d 8 mm | j 70 mm |
k 60 mm | l 49 mm |
