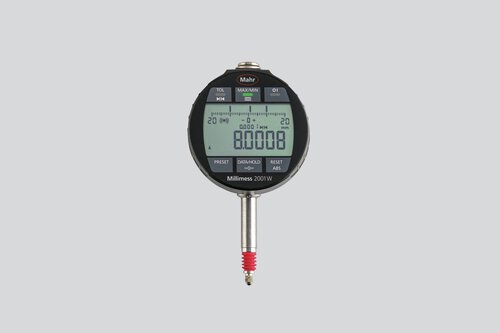

Inductive dial comparator Millimess 2001 Wi
| Product number: | 4346801 |
|---|
Inductive dial comparator Millimess 2001 Wi
IP protection category: IP 64
Data interface: Integrated Wireless, USB, Digimatic
Factory standard
Measuring span : ± 1 mm
Resolution: 0.0001, 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .000005", .00001", .00002", .00005", .0001", .0002", .0005"
Supply voltage: 100-240 V
Package contains: USB data and charging cable type DK-U1, Plug-in power supply (with 4 interchangeable adapters) for USB, rubber bellows, Screwdriver for pre-stroke adjustment (hexagon socket 0.9 mm), test certificate, instruction manual, carton
IP protection category: IP 64
Data interface: Integrated Wireless, USB, Digimatic
Factory standard
Measuring span : ± 1 mm
Resolution: 0.0001, 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .000005", .00001", .00002", .00005", .0001", .0002", .0005"
Supply voltage: 100-240 V
Package contains: USB data and charging cable type DK-U1, Plug-in power supply (with 4 interchangeable adapters) for USB, rubber bellows, Screwdriver for pre-stroke adjustment (hexagon socket 0.9 mm), test certificate, instruction manual, carton
Product price
876,00 €
Functions
ON/OFF, mm/inch, RESET (set display to zero), PRESET (for entering a numerical value), ABS (reference to the electrical zero point), Resolution selectable, TOL (Tolerance and Warning Limits Input), RANGE (switch the measuring range and resolution), MAX/MIN memory for searching the reversal point, (MAX-MIN) for testing flatness and concentricity, 0 (set the analog scale display to zero), Factor (Multiplier for measuring travel), Reversal of counting direction, HOLD (freeze current measured value), LOCK function (key lock), DATA (data transmission), Data interface Bi-Directional (external output and input option of characteristic values as well as setting of individual lock functions by software MarCom)
Application
For static and dynamic measuring tasks
Product features
- Tempered glass front with touch control panels with enormous advantages:
- scratch and impact resistant surface
- excellent protection against dust, coolants and lubricants
- wear-free touch operating keys
- improved safety of measurement values in measuring stands, as only a light touch of the key - no keystroke - is required, thus no adjustment or deformation of the measuring device - Clear tolerance limits in the scale display and colored LED signals (red, green, yellow) for measured value classification
- with warning limit input: No Go / Go / Warning Limit
- without warning limit input: No Go / Go / Rework - LED signals (red, green, yellow) in mode:
- powered by Accumulator: flashing signal
- powered by data cable DK-U1: permanent - High contrast LCD display, thus very clear and safe to read
- Analog scale display for visual recognition of the measuring movement during dynamic measurment tasks
- Operating and display unit (bezel) can be rotated through 280°
- Mounting shank and measuring spindle are both made of hardened stainless steel
- Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
- Linearized inductive absolute measuring system
- Measuring force spring is interchangeable
- Lower stop is adjustable
Energy supply
Integrated rechargeable accumulator (up to 4 weeks) or powered by USB Data Cable
Scope of delivery
USB data and charging cable type DK-U1, Plug-in power supply (with 4 interchangeable adapters) for USB, rubber bellows, Screwdriver for pre-stroke adjustment (hexagon socket 0.9 mm), test certificate, instruction manual, carton
Millimess 2001 Wi | Art. no. 4346801
