Indicating snap gage Marameter 840 FM
Product number: | 4452000 |
---|
Indicating snap gage Marameter 840 FM
Measuring range : mm
Package contains: flat contact point 903 (steel), instruction manual, wooden case, excludes indicator
Measuring range : mm
Package contains: flat contact point 903 (steel), instruction manual, wooden case, excludes indicator
Product price
1.980,00 €
Application
- For inspection of diameters of small hubs, registers and shoulders on shafts
- Can be used to inspect tooth span Wk and reference-free tooth thickness on spur gears having straight and helical teeth
- Universally applicable and extremely versatile, each instrument offers long measuring range within its adjustable range
Product features
- Rugged, forged steel frame with heat insulators
- Measuring spindle is mounted in long guideway with lever controlled retraction
- Measuring spindle and anvil spindle made of hardened stainless steel; with extending carbide-tipped measuring jaws
- Anvil spindle can easily be fine adjusted
- Constant measuring force as a result of built-in spring, eliminating user influence
- Maximum wear resistance due to non-contact positioning in conjunction with carbide tipped measuring faces in conjunction with carbide-tipped measuring faces
Scope of delivery
flat contact point 903 (steel), instruction manual, wooden case, excludes indicator
Marameter 840 FM | Art. no. 4452000

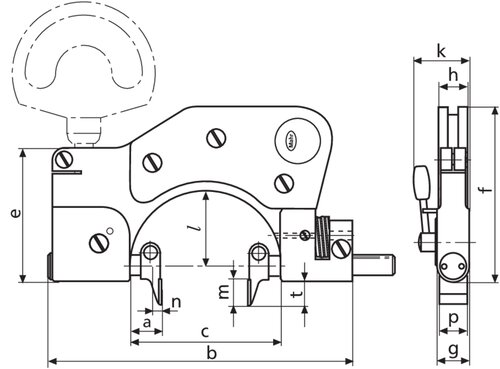

Dimensions
a 14 mm | b 140 mm | c 68 mm | e 60 mm | f 77 mm | g 13 mm | h 13 mm | k 25 mm | l 34 mm | m 12 mm | p 12 mm | t 11 mm
