Indicating plug gage Marameter 844 DR-D

Indicating plug gage Marameter 844 DR-D
show (scroll to) description & details
Product number: 4484338
844 DR-D Indicating plug gage
Nominal size: >60-80
Measuring span : 0.2
Connection thread g: M10x1
Design: Für Durchgangsbohrungen und Bleche
Material Contact surface: diamond
Product price
1.220,00 €
Variants
5,60 €
Please enter the label

Application Model for through holes, measuring surfaces diamant-tipped
Preferred application on very sensitive surfaces of soft non-ferrous metals and aluminium alloys
  • With extended guide cylinder for measuring through holes from the edge of the hole
  • For rapid testing of diameter, roundness and conicity of bores
  • Especially suitable for testing batches with tight tolerance zones
  • Rocking in the bore is not required to determine diameter
  • Ideal for use in conjunction with digital display units and for subsequent processing of measured values
Product features
  • Measuring probe made of hardened, stainless guide cylinder and diamond-tipped probes
  • Carbide driving needle transfers radial measuring movement to the display unit
  • Constant measuring force thanks to inbuilt measuring force spring. Measuring results are therefore independent of personal sense of touch
  • Measuring head, measuring instrument holder, depth extensions, right-angle attachments and depth stops form a comprehensive modular system
Material Contact surface diamond
Marameter 844 DR-D | Art. no. 4484338

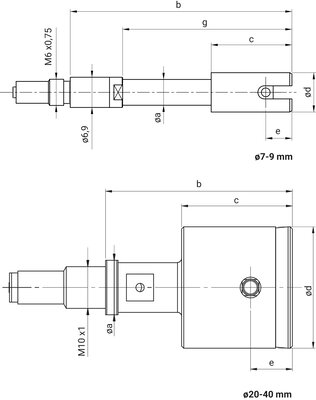

dimensionPicture
