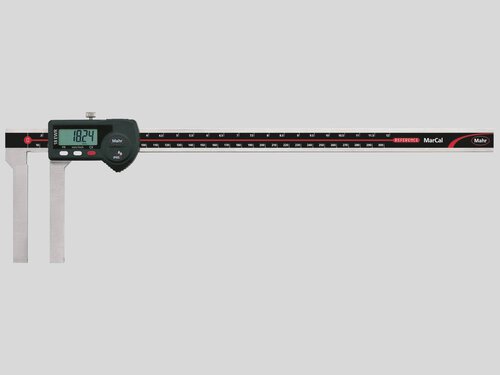

Digital universal caliper MarCal 18 EWR-V

Digital universal caliper MarCal 18 EWR-V
show (scroll to) description & details
Product number: 4112723
Digital universal caliper MarCal 18 EWR-V
Measuring range : 0 - 500 mm
Resolution mm/inch: 0.01 mm / 0.0005 inch
Depth rod:
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 65
Package contains: anvils, battery, instruction manual, case
Product price
1.305,00 €
Variants
5,60 €
Please enter the label
Functions ON/OFF, AUTO-ON / OFF, RESET (set display to zero), PRESET (for entering a numerical value), mm/inch, LOCK function (key lock), DATA (data transmission via connection cable)
Application
  • For inner and outer measurements of recesses, grooves, etc.
  • Individual adjustment by means of measuring anvils with M2.5 thread
Product features
  • High contrast digit display
  • Locking screw above
  • Immediate measurements due to the Reference System
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
  • Slide and beam made of hardened stainless steel
  • Measuring faces for outside measurement

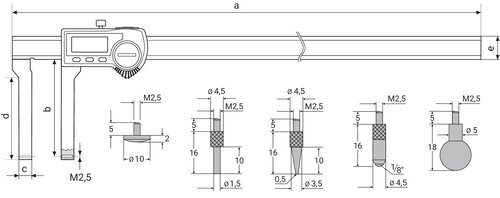

  • Thread M2.5 measuring jaws to accommodate measuring anvils for internal and external measurements
Scope of delivery anvils, battery, instruction manual, case
MarCal 18 EWR-V | Art. no. 4112723
