Digital universal caliper MarCal 16 EWR-V

Digital universal caliper MarCal 16 EWR-V
show (scroll to) description & details
Product number: 4118807KAL
Digital universal caliper MarCal 16 EWR-V
Measuring range : 0 - 200 mm
Resolution mm/inch: 0.01 mm / 0.0005 inch
Depth rod: rectangular
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: setting gage for inside measurement 16 Eel, measuring force device 16 Ec, depth measuring bridge 16 Em, anvils for outside measurement 16 Eea 1-3, anvils for inside measurement 16Eei 1-3, 4118808 without measuring anvils, adjustment bridge and measuring force equipment, battery, test certificate, instruction manual, case
Product price
689,90 €
Variants
Add service
Test interval
Issue a calibration certificate for
Place of use
Please enter the place of use
5,60 €
Please enter the label
Functions AUTO-ON / OFF, DATA (data transmission via connection cable), ON/OFF, PRESET (for entering a numerical value), RESET (set display to zero), mm/inch, LOCK function (key lock)
Application
  • Can be used as a standard caliper (four types of measurements) with standard accessories to measure recesses, grooves, etc.
  • Can be used with additional accessories to measure threads, bores and serration
Product features
  • High contrast digit display
  • Locking screw above
  • Lapped guideway
  • Measuring blade for inside measurements
  • Slide and beam made of hardened stainless steel
  • Step measuring function
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
Scope of delivery setting gage for inside measurement 16 Eel, measuring force device 16 Ec, depth measuring bridge 16 Em, anvils for outside measurement 16 Eea 1-3, anvils for inside measurement 16Eei 1-3, 4118808 without measuring anvils, adjustment bridge and measuring force equipment, battery, test certificate, instruction manual, case
MarCal 16 EWR-V | Art. no. 4118807KAL

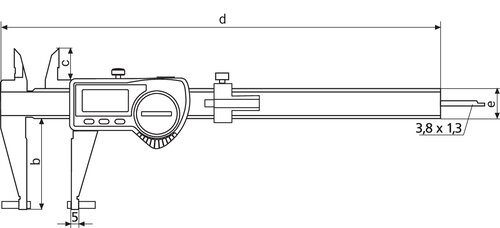

dimensionPicture
