Digital special calipers MarCal 16 EWR-AR

Digital special calipers MarCal 16 EWR-AR
show (scroll to) description & details
Product number: 4103082
Digital special calipers MarCal 16 EWR-AR
Measuring range : 0 - 200 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case
Product price
394,00 €
Variants
5,60 €
Please enter the label
Functions ON/OFF, AUTO-ON / OFF, mm/inch, LOCK function (key lock), RESET (set display to zero), DATA (data transmission via connection cable)
Application
  • Outer measuring surfaces made of carbide
  • For marking out workpieces
Product features
  • High contrast digit display
  • Locking screw above
  • Lapped guideway
  • Measuring blade for inside measurements
  • Slide and beam made of hardened stainless steel
  • Step measuring function
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
Scope of delivery battery, test certificate, instruction manual, case
MarCal 16 EWR-AR | Art. no. 4103082

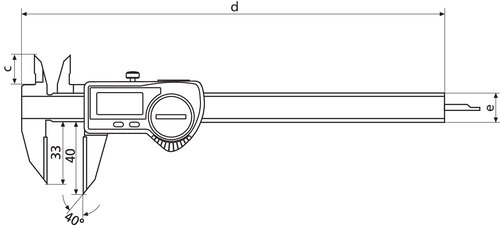

dimensionPicture
