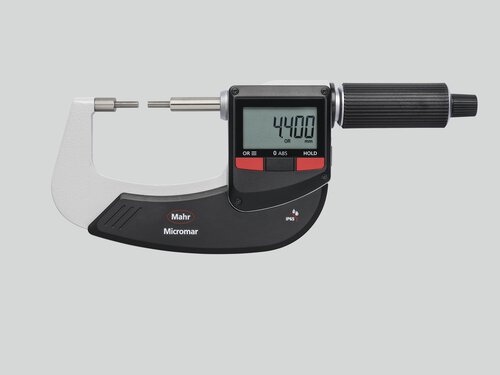

Digital micrometer Micromar 40 EWRi-B
| Product number: | 4157133 |
|---|
Digital micrometer Micromar 40 EWRi-B
For measuring grooves, spline shafts, recesses, etc.
IP protection category: IP 65
Data interface: Integrated Wireless
DIN 863-3
Measuring range 25 - 50 mm mm
Resolution mm/inch 0.001 / .00005"
Package contains: setting standard (measuring range of 25-50 mm), battery, test certificate, instruction manual, case
For measuring grooves, spline shafts, recesses, etc.
IP protection category: IP 65
Data interface: Integrated Wireless
DIN 863-3
Measuring range 25 - 50 mm mm
Resolution mm/inch 0.001 / .00005"
Package contains: setting standard (measuring range of 25-50 mm), battery, test certificate, instruction manual, case
Product price
822,00 €
Functions
RESET (set display to zero), ABS (display can be set to zero without losing reference to ORIGIN), mm/inch, ORIGIN (for entering a numerical value), LOCK function (key lock), TOL (Tolerance and Warning Limits Input), HOLD (freeze current measured value), DATA (data transmission), Bi-directional data interface (for data retrieval - transfer of parameters - remote control - individual function locks via MarCom software)
Application
For measuring grooves, spline shafts, recesses, etc.
Product features
- Reduced measuring surfaces Ø 3 mm
- High contrast digit display
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide-tipped
- Rapid drive
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
Energy supply
Battery life approx. 2 years
Data interface
Integrated Wireless
Material Contact surface
carbide
Scope of delivery
setting standard (measuring range of 25-50 mm), battery, test certificate, instruction manual, case
Micromar 40 EWRi-B | Art. no. 4157133
Dimensions
a 44 mm | b 13.5 mm | c 82 mm |
