Digital 3D touch probe MarTest 802 EW

Digital 3D touch probe MarTest 802 EW
show (scroll to) description & details
Product number: 4304300
Digital 3D touch probe MarTest 802 EW
Working areas, X-, Y-, Z-axis: -2 to 4 mm
Resolution: 0.005
Package contains: battery, instruction manual, stylus 802 EWt
Product price
654,00 €
Variants
5,60 €
Please enter the label
Functions ON/OFF, Auto OFF after 2 hours
Application Can be used on milling and CNC machines to
  • determine the zero position on workpieces
  • determine the center of bores
  • determine and correct the alignment of a workpiece

and for the measurement of

  • lengths
  • depths
Product features
Excellent readability thanks to combined display:
- bar graph for dynamic path information
- digital display for exact readings
  • Can be controlled independently of a machine tool
  • Large working range in all axes (X, Y, Z) prevents damage to the stylus by contacting errors
  • Compact metal housing and long probe arm
  • Shockproof movement
Scope of delivery battery, instruction manual, stylus 802 EWt
MarTest 802 EW | Art. no. 4304300

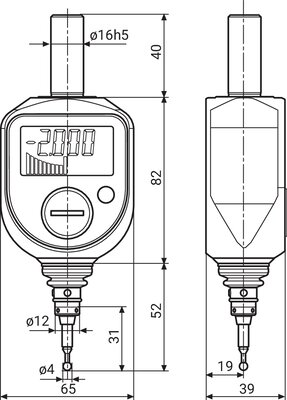

dimensionPicture
