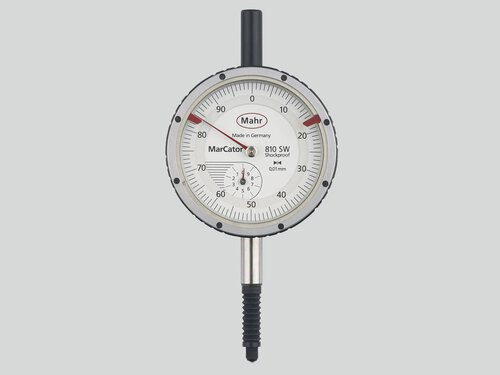

Dial indicator with IP protection MarCator 810 SW
| Product number: | 4315000 |
|---|
Dial indicator with IP protection MarCator 810 SW
IP protection category: IP 54
DIN 878
Measuring span : 10mm
Readings: 0.01
Package contains: case
IP protection category: IP 54
DIN 878
Measuring span : 10mm
Readings: 0.01
Package contains: case
Product price
112,50 €
Application
- Special design with IP protection against liquids and dust
- Ideal for use in particularly challenging environments where the dial gauge is highly contaminated or exposed to splash water
Product features
- High contrast dial face
- Adjustable tolerance markers
- Chrome plated housing
- Precision gears and pinions
- Hermetically sealed upper protective measuring spindle cap, bezel and transparent dial cover; sealed with O-rings
- Measuring spindle sealed with rubber sleeve, thus preventing contamination by liquids and impurities
Scope of delivery
case
MarCator 810 SW | Art. no. 4315000

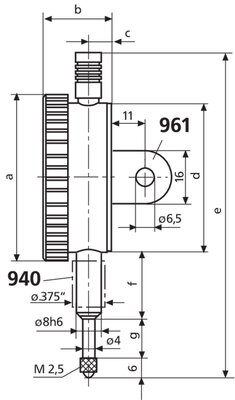

Dimensions
a 61 mm | b 24.2 mm | c 7.9 mm | d 52 mm | e 127.6 mm | f 22 mm | g 22.1 mm
