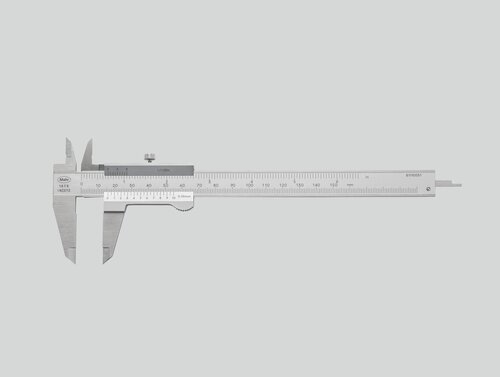

Caliper with analog display MarCal 16 FN
| Product number: | 4100421 |
|---|
Caliper with analog display MarCal 16 FN
Measuring range : 0 - 200 mm
Readings mm: 0.05 mm /
Thumb clamp
Package contains: thread table, case
Measuring range : 0 - 200 mm
Readings mm: 0.05 mm /
Thumb clamp
Package contains: thread table, case
Product price
102,00 €
Application
With locking screw: Maintenance-free clamping of the slider thanks to knurled locking screw
Product features
- Vernier and scale have a satin chrome finish for glare free reading
- Locking screw above
- Measuring surfaces made of steel
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Step measuring function
- Raised guideway for the protection of the scale
Package contains
thread table, case
MarCal 16 FN | Art. no. 4100421
Dimensions
a 14 mm | b 50 mm | c 19 mm | d 290 mm | e 17 mm | f 3.8 mm |
