Indicating plug gage Marameter 844 DR-M

Indicating plug gage Marameter 844 DR-M
show (scroll to) description & details
Product number: 4484494
844 DR-M Indicating plug gage
Nominal size: >140-150
Measuring span : 0.6
Connection thread g: M10x1
Design: For through holes, with extended measuring range
Material Contact surface: carbide
Product price
1.200,00 €
Variants
5,60 €
Please enter the label

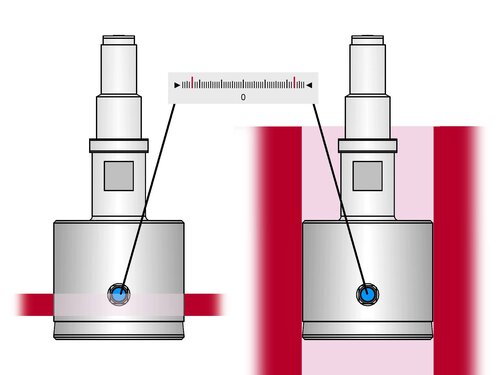

Application Model for through holes, with extended measuring range
  • With extended guide cylinder for measuring through holes from the edge of the hole
  • For the rapid testing of diameter, roundness and conicity of bores
  • Especially suitable for testing batches with wide tolerance zones
  • Rocking in the bore is not required to determine diameter
  • Ideal for use in conjunction with digital display units and for subsequent processing of measured values
Product features
  • Measuring head has a hard, stainless cylinder guide and carbide-tipped anvils
  • The carbide expanding pin transfers radial movement to indicating instrument
  • Constant measuring force as a result of built-in spring, eliminating user influence
  • Extensive modular system is composed of measuring head, holder, depth extension, right angle attachments and depth stops
Material Contact surface carbide
Marameter 844 DR-M | Art. no. 4484494
dimensionPicture
